DURABOOK Z14I
Laptop Notebook

Notebook Durabook Z14I laptop

Larger display - More durable - Longer battery life

Notebook Durabook Z14I laptop

The Z14I fully-rugged laptop is engineered for the extreme conditions faced by military and field service personnel around the globe. The sleek new design of the Z14I is packed with features like a FHD 14-inch DynaVue® 1000 NIT sunlight readable touch panel display, 8th Generation Intel® Core™ processors and 16-hour battery life.
The Z14I allows for multiple configurations and offers robust I/O port options.

  • 14.0" FHD DynaVue® SR display with 1000 nits
  • 8th Generation Intel® Core™ Processor
  • Extreme rugged certified for salt fog & fungus resistance
  • Touch screen modes: glove, stylus, finger & water
  • Unprecedented I/O port options
  • Standard backlit keyboard & multimedia bay options
Spécifications Z14I Laptop

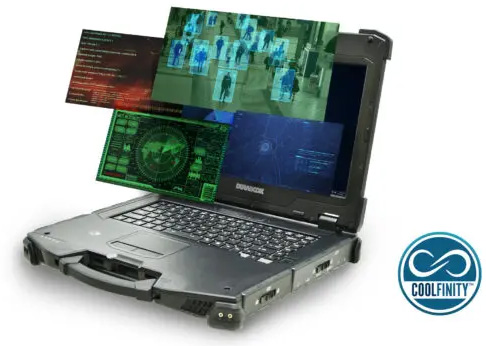

DURABILITY

  • MIL-STD 810G certified (Drop, Shock, Vibration, Rain, Dust, Altitude, Freeze/Thaw, High/Low Temperature, Temperature Shock, Humidity, Explosive Atmosphere, Solar Radiation, Salt Fog, Fungus Resistance)
  • MIL-STD-461G certified (Conduction, Radiation, Conducted Susceptibility, Radiated Susceptibility)
  • ANSI/ISA 12.12.01-2000, Class I, Division 2
  • 6' drop
  • IP 65 certified
  • Aluminum-magnesium alloy chassis
  • Port covers
  • Optional sunlight readable display
OPERATING SYSTEM
  Windows® 10 Pro 64-bit
PROCESSORS

  • Intel® Core™ i7-8650U vPro™ (8th Gen) 1.9GHz processor with Turbo Boost Technology up to 4.2GHz, 8MB cache
  • Intel® Core™ i7-8550U(8th Gen) 1.8GHz processor with Turbo Boost Technology up to 4.0GHz, 8MB cache
  • Intel® Core™ i5-8350U vPro™ (8th Gen) 1.7GHz processor with Turbo Boost Technology up to 3.6GHz, 6MB cache
  • Intel® Core™ i5-8250U (8th Gen) 1.6GHz processor with Turbo Boost Technology up to 3.4GHz, 6MB cache
GRAPHICS
  Intel® UHD Graphics 620
MEMORY
  2 slots 8GB up to 32GB (2400MHz DDR4)
STORAGE
  256GB SSD

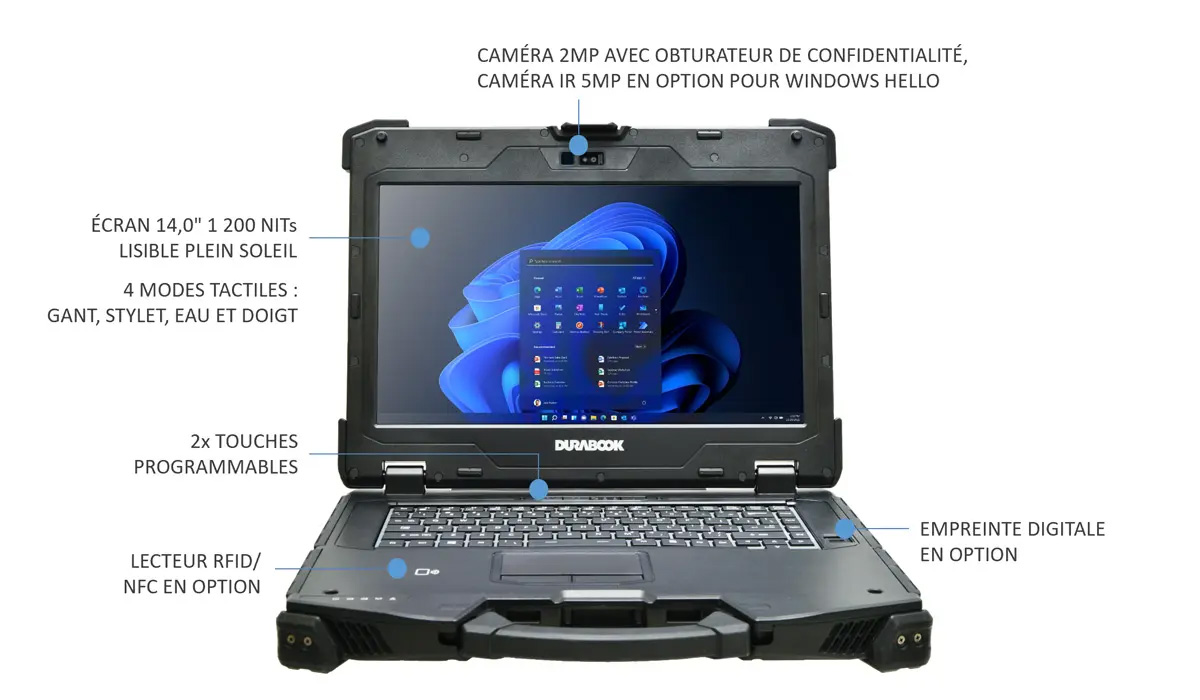

DISPLAY

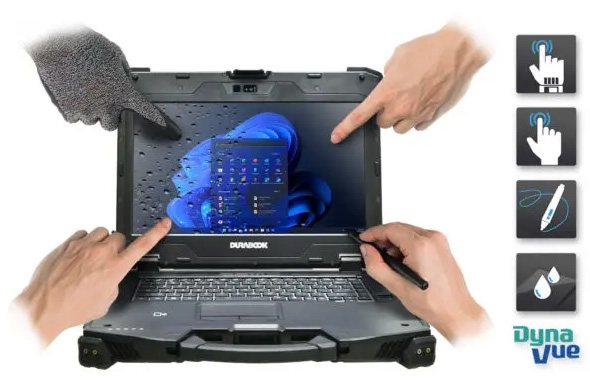

  • 14.0" FHD (1920 x 1080) with 1000 nits DynaVue® sunlight readable display with capacitive multi-touch screen
  • User selectable touch mode for Finger/Water, Glove, or Stylus programmable function
AUDIO

  • Integrated microphone
  • Intel® High Definition Audio Compliant
  • Integrated speaker x 2
  • Keyboard volume and mute controls
CAMERA
  Integrated 2.0 MP web-cam with shutter design

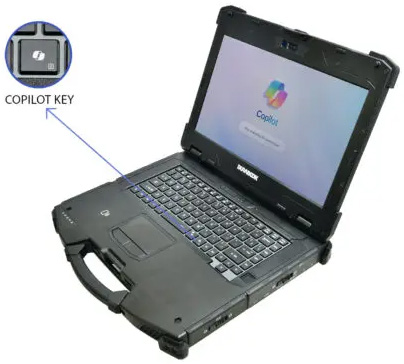

KEYBOARD & INPUT

  • 2 user-definable keys (P1/P2)
  • RF signal slide-switch
  • Standard membrane keyboard with optional
  • LED backlight membrane keyboard
COMMUNICATONS

  • Integrated 10/100/1000 Ethernet
  • Intel® Dual Band Wireless AC 9260 (802.11a/b/g/n/ac)
  • Bluetooth® V5.0
  • Optional dedicated GPS module (UBLOX-NEO-M8N)
  • Optional 4G LTE multi-carrier mobile broadband
  • Optional RF antenna pass-through for GPS, WWAN, and WLAN
SECURITY

  • Intel® vPro™ Technology (per CPU options)
  • TPM 2.0
  • NIST BIOS compliant
  • Easy removable SSD
  • Smart card reader default

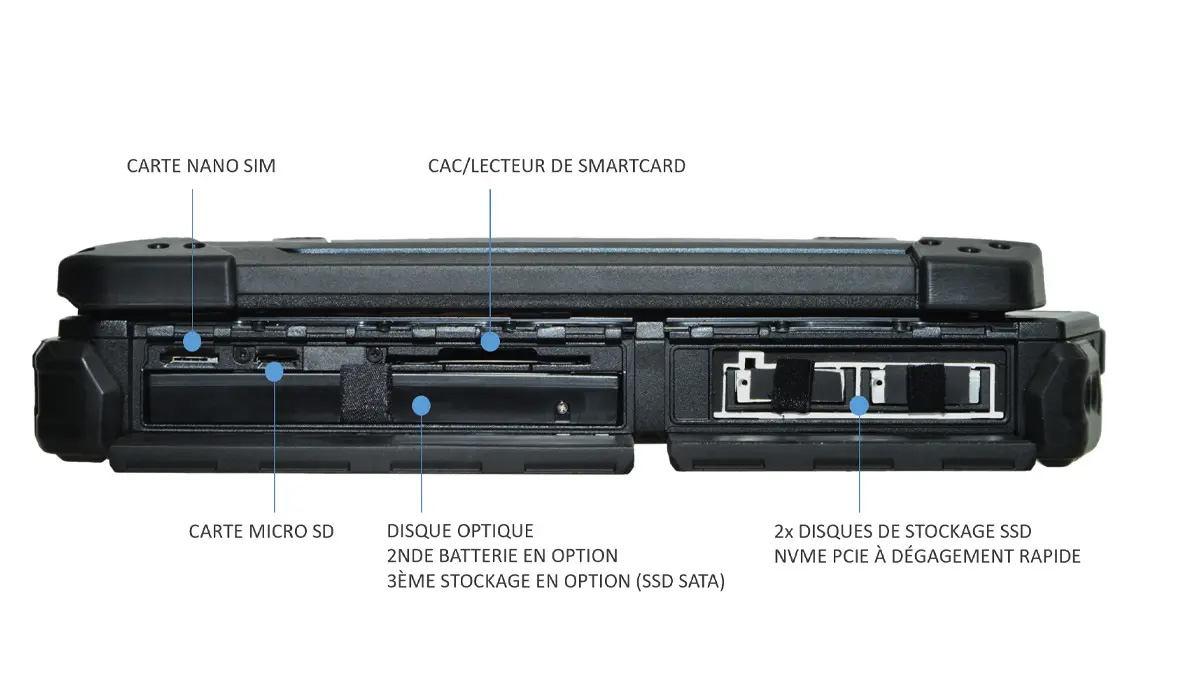

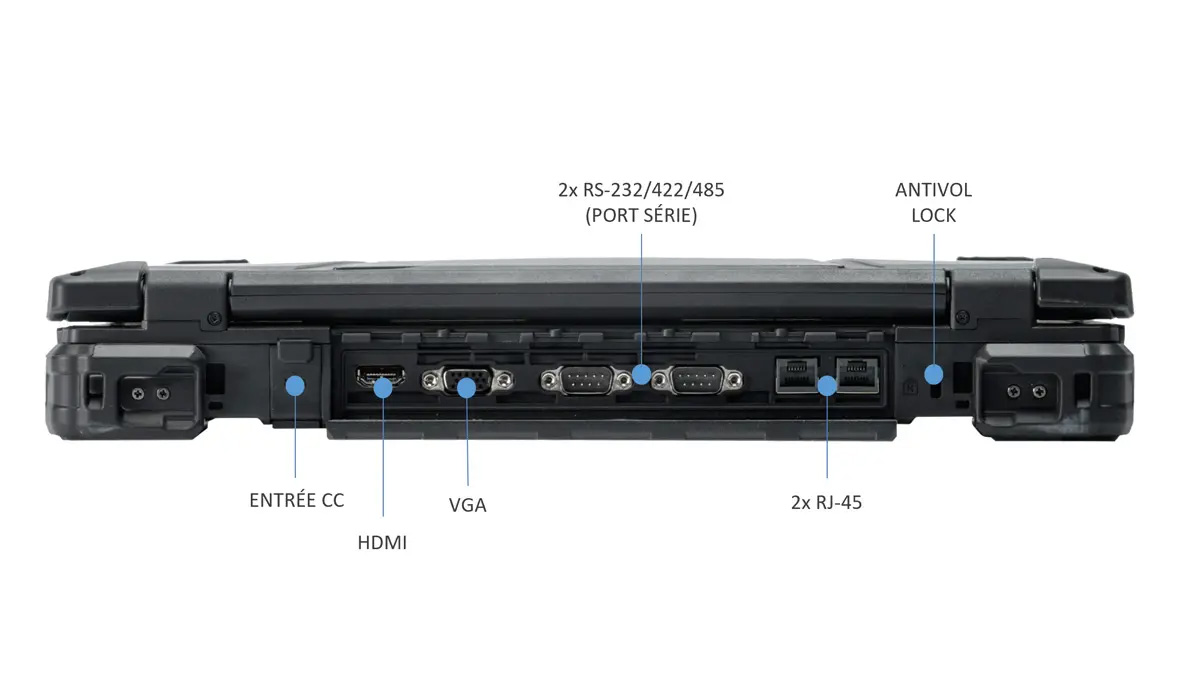

I/O INTERFACES

  • USB 3.1 (type A) x 2
  • USB 2.0 (type A) x 2
  • Audio in/out (combo jack) x 1
  • SD card (SDXC) x 1
  • 10/100/1000 Ethernet (RJ-45) x 1
  • VGA port (D-sub,15-pin) x 1
  • HDMI port (type A) x 1
  • Serial port (RS-232: D-sub,9-pin) x 1 optional to support RS-422/ RS-485)²
  • Docking connector (41-pin Pogo) x 1
  • SIM card x 1
  • Smart card reader x 1
  • DC-In jack x 1
  • Optional RF antenna pass-through for GPS, WWAN, and WLAN

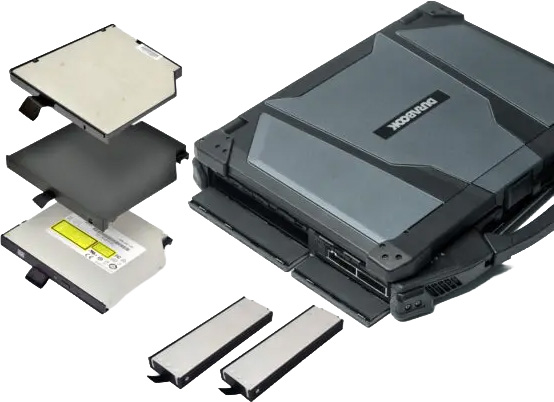

MEDIA BAY

  • Optional DVD super multi
  • Optional 2nd battery
  • Optional 2nd SSD

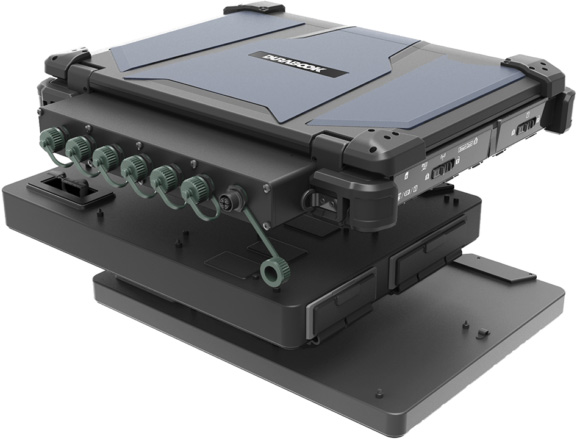

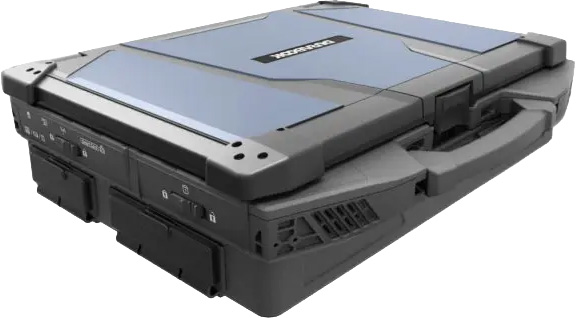

  • Optional ExpressCard 54 x 1 and PCMCIA Type II x 1
POWER

  • AC adapter: 100-240V, 50Hz-60Hz, 65W
  • Optional AC adapter (100-240V, 50Hz-60Hz, 120W), with NVIDIA® VGA
  • Main battery Li-Ion, 10.8V, 4700mAh, 12 hours³
  • Optional 2nd battery Li-Ion 10.8V, 4700mAh, 12 hours³
  • Optional bridge battery: 5 minutes swap time4
ENVIRONMENT

  • Temperature
    Operating: -4°F ~140°F
    Storage: -40°F to 160°F
  • Humidity: 5% ~ 95%
DIMENSION & WEIGHT

  • 14.01 in (L) X 11.02 in (W) x 1.97 in (H)
  • 7.94 lb
WARRANTY
  3-year DURABOOK 3-D Warranty

¹ Night vision mode is available only for sunlight readable display

² Contact your sales representative for feature availability

³ Tested using the MobileMark 2014 battery life benchmark. Results may vary under different situations including hardware configuration, software, operating conditions, power management settings and other factors.

4 The system will stay operating (within 300 seconds in standby mode) when user swaps the battery.

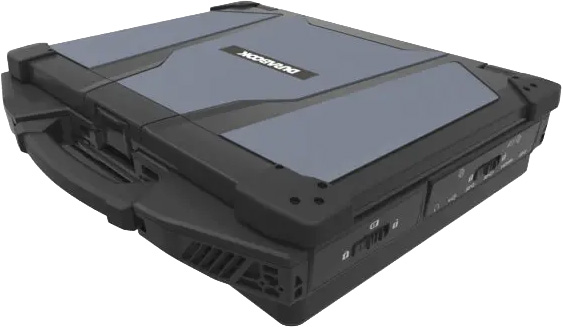

5 Weight varies with options. The dimension with optional discrete VGA is 61mm (H).
