Tablet PC Durabook U11

The first all-inclusive compact rugged tablet

Tablet PC Durabook U11

Making impossible choices between mutually exclusive I/O and devices is a thing of the past.
U11 has it all. Under the extremely compact and rugged exterior, U11 has unprecedented amount of built-in features and generous space for further expansion.
Running on Intel® 7th Gen CPU with its unique fan-less design, U11 provides the perfect blend of functions, performance and reliability.
For field operatives everywhere, the next generation of rugged mobile solution has arrived.

Fully Rugged Features

  • MIL-STD 810G: IP65, 72 inch drop, Vibration.
  • MIL-STD 461G
  • C1D2
  • Operating temperature: -20°C to 60°C, storage: -40°C to 71°C.
  • Sunlight-readable display, optional digitizer with stylus.
  • Touch panel support finger/water, glove, and stylus modes.
  • Fanless design

    • Built-in Functions

  • Built-in MicroSD Card Reader
  • Built-in LAN port
  • Built-in Smart Card Reader (optional)
  • Built-in Fingerprint Scanner (optional)
  • Quick Release SSD
  • Stealth / Night Vision Mode
  • TPM 2.0

    • Thin, Light and Durable

  • Only 23.8 mm in height and 1.39 kg in weight.
  • Designed with aluminum-magnesium alloy chassis cover.
  • Main Battery provided up to 13.5 hrs battery life.
  • Bridge Battery designed for main battery hot swap purpose.

    • Suitable for Industrial Applications

  • Military / Defence
  • Public Safety
  • Field Service
  • Petrochemical / Oil & Gas / Food Processing
  • Industrial Applications
    • Choisissez des accessoires qui vous serviront sur le long terme

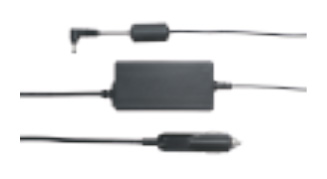

    Car Adapter

    Office Dock

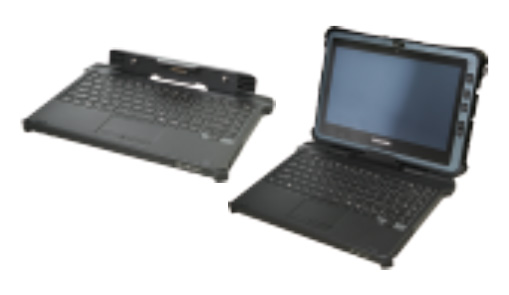

    Keyboard

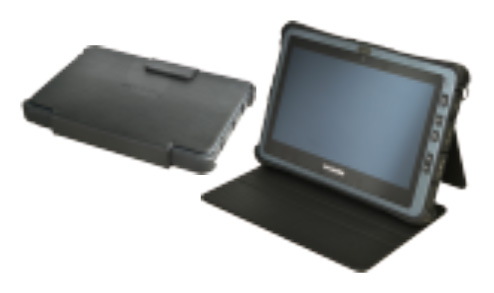

    Folio Case

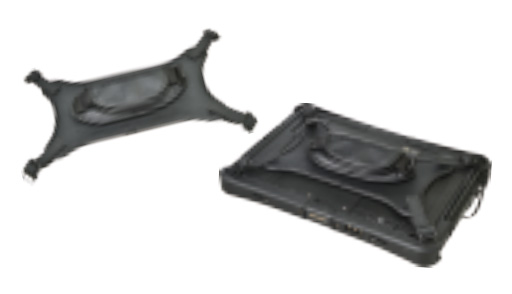

    Rotate strap

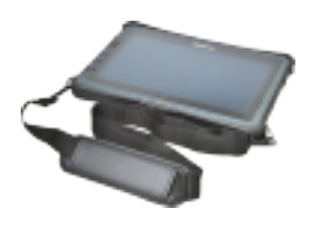

    Shoulder Strap

    Handle

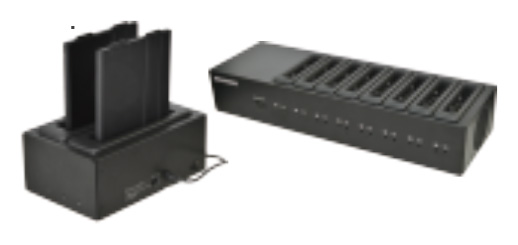

    Battery Charger

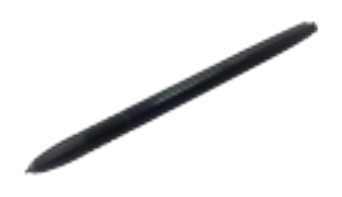

    Digitizer Pen

    Hand Dock

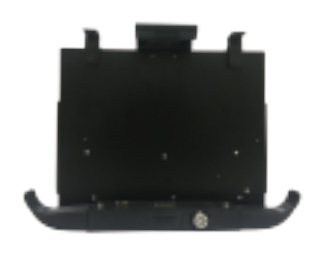

    Vehicle Dock
    Spécifications U11
    RUGGED FEATURES
      MIL-STD 810G
    • Altitude-Storage: Method 500.6, Procedure I, 40000 ft
    • Altitude-Operating: Method 500.6, Procedure II, 40000 ft
    • High Temperature-Storage: Method 501.6, Procedure I, 33°C ~ 71°C
    • High Temperature-Operating: Method 501.6, Procedure II, 60°C
    • Low Temperature-Storage: Method 502.6, Procedure I, -46°C
    • Low Temperature-Operating: Method 502.6, Procedure II, -37°C (AC mode)
    • Temperature Shock: Method 503.6, Procedure I, from -40°C ~ 71°C, 3 cycles
    • Rain-Blowing Rain; Rain Drip: Method 506.6, Procedure I, total 6 surfaces; Method 506.6, Procedure III
    • Humidity-Operating: Method 507.6, Procedure I, relative humidity of 95%, Cycel B1, Induced 90 days + Natural 45 days
    • Blowing Dust: Method 510.6, Procedure I, 60°C
    • Blowing Sand: Method 510.6, Procedure II, 60°C
    • Explosive Atmosphere: Method 511.6, Procedure I, 60°C
    • Vibration-General Vibration Operating: Method 514.7, Procedure I, Category 24, Fig. 514.7E-1
    • Functional Shock: Method 516.7, Procedure I, 40G, 11ms
    • Method 516.7, Procedure V, 75G, 6ms
    • Transit Drop: Method 516.7, Procedure IV, 26 drops from 72 inch height onto 2in plywood
    • Freeze/Thaw: Method 524.1, Procedure III
    Water Sealing
    • IEC 60529 IP-X5
    Dust Proof
    • IEC 60529 IP-6X
    MIL-STD 461G
    • Meet MIL-STD-461G: CE102, RE102, CS101, CS114, CS115, CS116, RS103
    ANSI/ISA 12.12.01(C1D2)
    ENVIRONMENT

    • Temperature
      Operating: -20°C ~ 60°C (with wilde-temp.SSD / AC mode)
      Storage: -40°C ~ 71°C
    • Humidity
      Operating: 5% ~ 95%
    OPERATING SYSTEM
      Windows® 10 Pro 64-bit
    CPU
      Intel® 7th Generation Kaby Lake -Y series
    MEMORY
      Onboard LPDDR3, 4GB/8GB/16GB
    STORAGE
      Easy Removable M.2 SSD, 128GB/256GB/512GB/1TB¹
    BIOS & PNU
      UEFI Security Boot Function&Power Management Menu
    DISPLAY

    • 11.6" FHD (1920 x 1080) LCD
    • Capacitive Multi-Touch Panel
    • Sunlight-Readable Display 1000 nits¹
    • Digitizer with Stylus for Sunlight-Readable Display¹
    • Built-in Ambient Light Sensor
    • Auto Rotation (Nine Axis Motion Sensor)
    AUDIO

    • Intel® High Definition Audio
    • Two 1.5KHz / 70dB Speakers
    CAMERA

    • Front: Integrated 2MP Webcam
    • Rear: Integrated 8MP auto-focus with flash
    COMMUNICATION

    • One Integrated Gigabit Ethernet with RJ45
    • Intel® Dual Band Wireless AC9260 (WLAN 2x2 a/b/g/n/AC) / Bluetooth 5.0
    • WWAN M2 module¹
    • Dedicate GPS module (W/u-Blox NEO M8N solution)¹ ²
    SECURITY

    • Kensington Lock
    • TPM 2.0
    • Smart Card Reader¹
    • Easy Removable SSD
    • Stealth Mode / Night Vision Mode
    • RFID Reader¹ ³
    • Intel® vPro™ Technology¹
    • Fingerprint Scanner¹
    BUTTONS

    • Power ON / OFF Button
    • UP and DOWN Button (+ / -)
    • Two Programmable Buttons (P1 / P2)
    EXPANSION MODULES
      One PCMCIA type II or Express Card 54 or RFID¹ ³
    I/O PORTS

    • One USB 3.0
    • One USB 2.0 or RS232 port or Barcode Scanner¹ 4
    • One SD Card Reader (support micro-SDXC)
    • One Combo jack for Headphone and Microphone
    • One RJ-45 jack
    • One HDMI port or optional one miniDP port³
    • One DC-in
    • One Docking connector
    • Three RF Pass-thru connectors for WWAN and WLAN and GPS¹
    BATTERY

    • Main Battery
      2-Cell Li-Ion 4800 mAh, Hot Swappable, 13.5 hrs5
    • Bridge Battery
      1-Cell Li-Ion 1100 mAh, Fixed, 5 mins¹ 5
    AC ADAPTOR
      100V-240V, 50Hz-60Hz / 19V, 65W
    DIMENSIONS
      317 mm (L) x 215 mm (W) x 23.8 mm (H)6
    WEIGHT
      1.39 kg / 3.0 lb6

    ¹ Optional items.

    ² GPS Antenna supports GPS&GLONASS only, other needs by customize request.

    ³ The items are mutually exclusive module and by request.

    4 RS232 can optional to support RS422/RS485 by request.

    5 Battery life may vary with the product configurations, settings, usage patterns, and operating environment.

    6 Actual dimension and weight may vary with different configurations.
